RESILIENT SEATED GATE VALVE

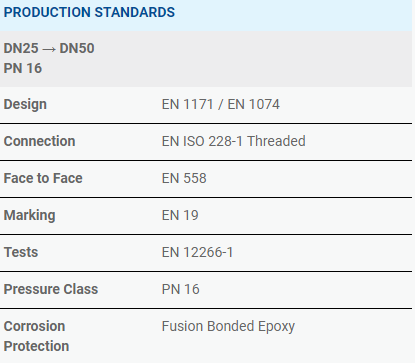

Specification:

• • Threaded gate valve with full bore.
  • Stainless steel spindle with rolled thread and bearing.
  • Total sufrace rubbered wedge with replaceable spindle nut.
  • The body and bonnet are manufactured from ductile iron castings. It is resistant to high tensile stress occurring in pipelines.
  • Low operating torque due to plastic sliding guides on the wedge.
  • Maintenance-free and corrosion-resistant stem sealing.
  • 100% tight sealing is achieved through EPDM covered wedge fully contacting the fusion bonded epoxy coated flow surface.
  • Wedge and body guide rails ensure stable operation.
  • Stainless steel stem with rolled threads for high strength & low operation torque.
  • Full bore characteristics without distruption of flow results in low pressure drops across the valve.
