| Outer Diameter (DN) |
SDR 41 PN4 |
SDR 33 PN5 |
SDR 26 PN6 |
SDR 21 PN8 |
SDR 17 PN10 |
SDR 13.6 PN12.5 |
SDR 11 PN16 |
SDR 9 PN20 |
SDR 7.4 PN25 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/mm | Kg/m | S/mm | Kg/m | S/mm | Kg/m | S/mm | Kg/m | S/mm | Kg/m | S/mm | Kg/m | S/mm | Kg/m | S/mm | Kg/m | S/mm | Kg/m | |
| 20 | – | – | – | – | – | – | – | – | – | – | – | – | 2 | 0.112 | 2.30 | 0.133 | 3 | 0.154 |
| 25 | – | – | – | – | – | – | – | – | – | – | 2 | 0.152 | 2.30 | 0.171 | 3 | 0.22 | 3.5 | 0.24 |
| 32 | – | – | – | – | – | – | – | – | 2 | 0.187 | 2.4 | 0.232 | 3 | 0.272 | 3.6 | 0.327 | 4.40 | 0.386 |
| 40 | – | – | – | – | – | – | 2 | 0.239 | 2.4 | 0.295 | 3 | 0.356 | 3.7 | 0.43 | 4.5 | 0.509 | 5.5 | 0.6 |
| 50 | – | – | – | – | 2 | 0.314 | 2.4 | 0.359 | 3 | 0.453 | 3.7 | 0.550 | 4.60 | 0.666 | 5.6 | 0.788 | 6.9 | 0.936 |
| 63 | – | – | – | – | 2.5 | 0.494 | 3 | 0.565 | 3.8 | 0.720 | 4.7 | 0.873 | 5.8 | 1.05 | 7.1 | 1.26 | 8.6 | 1.47 |
| 75 | – | – | – | – | 2.9 | 0.675 | 3.6 | 0.80 | 4.5 | 1.02 | 5.6 | 1.24 | 6.8 | 1.47 | 8.4 | 1.76 | 10.3 | 2.09 |
| 90 | – | – | – | – | 3.5 | 0.978 | 4.3 | 1.160 | 5.4 | 1.46 | 6.7 | 1.77 | 8.200 | 2.12 | 10.1 | 2.54 | 12.3 | 3 |
| 110 | – | – | – | – | 4.2 | 1.43 | 5.3 | 1.74 | 6.6 | 2.17 | 8.1 | 2.62 | 10 | 3.14 | 12.3 | 3.78 | 15.1 | 4.49 |
| 125 | – | – | – | – | 4.8 | 1.84 | 6 | 2.200 | 7.4 | 2.76 | 9.200 | 3.37 | 11.4 | 4.08 | 14 | 4.87 | 17.100 | 5.77 |
| 140 | – | – | – | – | 5.4 | 2.320 | 6.7 | 2.8 | 8.300 | 3.46 | 10.3 | 4.22 | 12.7 | 5.08 | 15.7 | 6.11 | 19.2 | 7.25 |
| 160 | – | – | – | – | 6.2 | 3.04 | 7.7 | 3.68 | 9.5 | 4.520 | 11.8 | 5.5 | 14.6 | 6.67 | 17.900 | 7.96 | 21.9 | 9.44 |
| 180 | – | – | – | – | 6.9 | 3.79 | 8.6 | 4.63 | 10.7 | 5.71 | 13.3 | 6.98 | 16.400 | 8.42 | 20.100 | 10.1 | 24.6 | 11.9 |
| 200 | – | – | – | – | 7.7 | 4.70 | 9.6 | 5.73 | 11.9 | 7.05 | 14.7 | 8.56 | 18.2 | 10.4 | 22.4 | 12.4 | 27.4 | 14.8 |
| 225 | – | – | – | – | 8.6 | 5.89 | 10.8 | 7.26 | 13.4 | 8.93 | 16.600 | 10.9 | 20.5 | 13.1 | 25.2 | 15.8 | 30.8 | 18.6 |
| 250 | – | – | – | – | 9.6 | 7.3 | 11.9 | 8.9 | 14.8 | 11 | 18.400 | 13.4 | 22.7 | 16.2 | 27.9 | 19.4 | 34.200 | 23 |
| 280 | – | – | – | – | 10.7 | 9.1 | 13.4 | 11.22 | 16.600 | 13.7 | 20.6 | 16.8 | 25.4 | 20.3 | 31.3 | 24.3 | 38.300 | 28.9 |
| 315 | 7.7 | 7.52 | 9.7 | 9.37 | 12.1 | 11.6 | 15 | 14.13 | 18.7 | 17.400 | 23.2 | 21.2 | 28.6 | 25.6 | 35.200 | 30.8 | 43.1 | 36.5 |
| 355 | 8.7 | 9.55 | 10.9 | 11.8 | 13.6 | 14.6 | 16.900 | 17.940 | 21.1 | 22.1 | 26.1 | 26.9 | 32.200 | 32.5 | 39.700 | 39.1 | 48.5 | 46.3 |
| 400 | 9.8 | 12.1 | 12.3 | 15.1 | 15.3 | 18.6 | 19.100 | 22.84 | 23.7 | 28 | 29.4 | 34.1 | 36.300 | 41.3 | 44.7 | 49.6 | 54.7 | 58.8 |
| 450 | 11 | 15.3 | 13.8 | 19 | 17.2 | 23.5 | 21.5 | 28.9 | 26.7 | 35.4 | 33.1 | 43.2 | 40.9 | 52.3 | 50.3 | 62.7 | 61.5 | 74.4 |
| 500 | 12.3 | 19 | 15.3 | 23.4 | 19.1 | 28.9 | 23.9 | 35.700 | 29.7 | 43.8 | 36.800 | 53.3 | 45.4 | 64.5 | 55.8 | 77.3 | – | – |
| 560 | 13.7 | 23.6 | 17.2 | 29.4 | 21.4 | 36.2 | 26.7 | 44.7 | 33.200 | 54.8 | 41.2 | 66.900 | 50.8 | 80.8 | 62.5 | 97 | – | – |
| 630 | 15.4 | 29.9 | 19.3 | 37.1 | 24.1 | 45.9 | 30 | 56.5 | 37.4 | 69.400 | 46.3 | 84.6 | 57.2 | 102 | 70.3 | 125 | – | – |
| 710 | 17.4 | 38 | 21.8 | 47.2 | 27.2 | 58.4 | 33.9 | 72 | 42.1 | 88 | 52.2 | 107 | 64.5 | 130 | 79.3 | 160 | – | – |
| 800 | 19.6 | 48.1 | 24.5 | 59.7 | 30.6 | 73.9 | 38.1 | 91.2 | 47.4 | 112 | 58.8 | 136 | 72.600 | 166 | 89.3 | 202 | – | – |
| 900 | 22 | 60.9 | 27.6 | 75.6 | 34.4 | 93.4 | 42.9 | 115 | 53.3 | 141 | 66.100 | 173 | 81.7 | 210 | – | – | – | – |
| 1000 | 24.5 | 75.2 | 30.6 | 93.1 | 38.2 | 115 | 47.7 | 143 | 59.3 | 175 | 73.5 | 215 | 90.8 | 259 | – | – | – | – |
| 1200 | 29.4 | 108 | 36.7 | 134 | 45.9 | 166 | 57.2 | 205 | 71.100 | 262 | 88.2 | 304 | – | – | – | – | – | – |
HDPE PIBE
PE 100 Pipes and Fittings

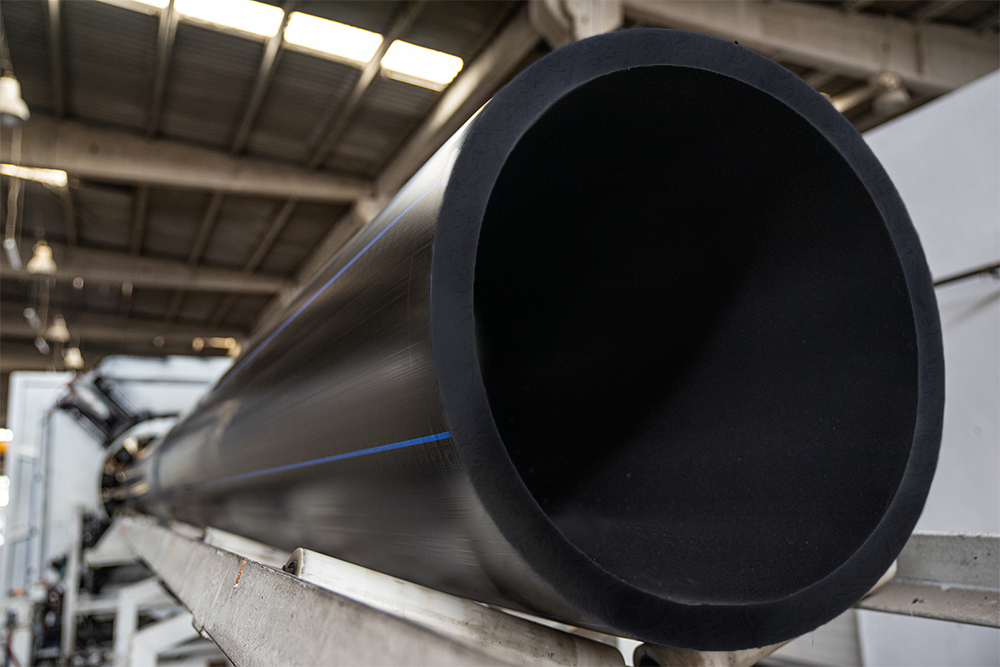

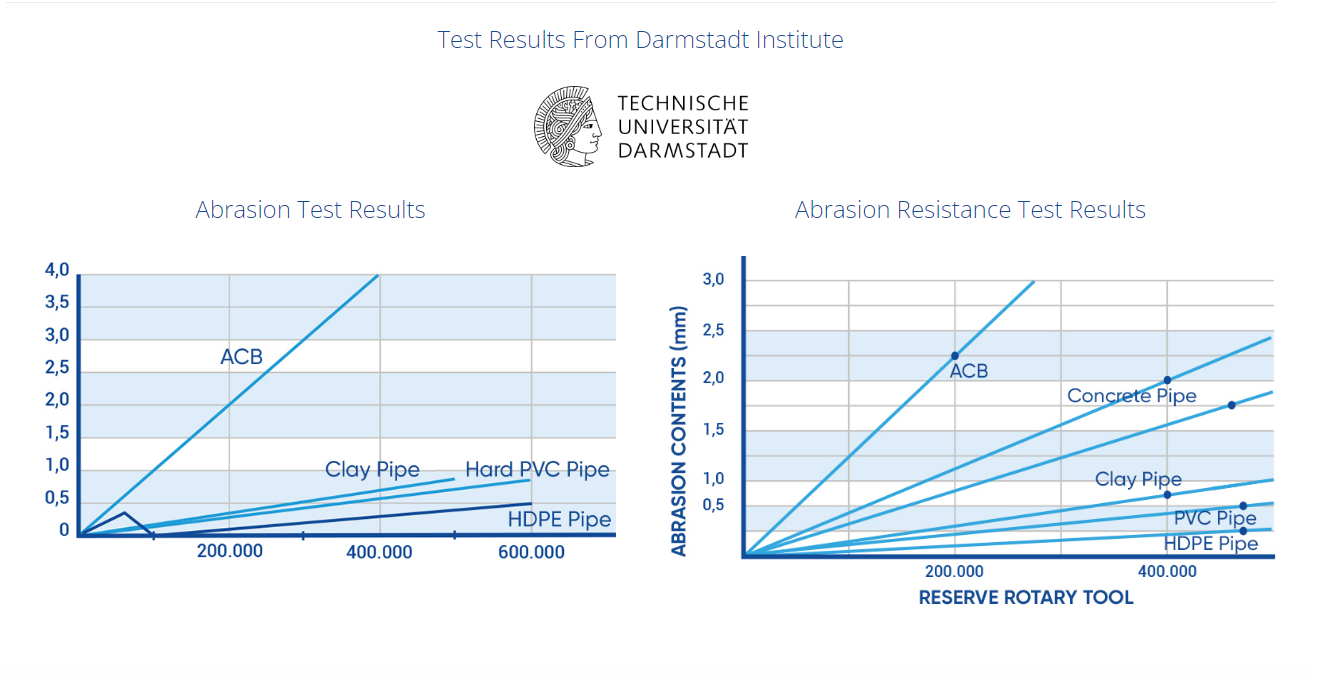

Polyethylene 100 (PE100) | is the strongest PE pipe material is known today

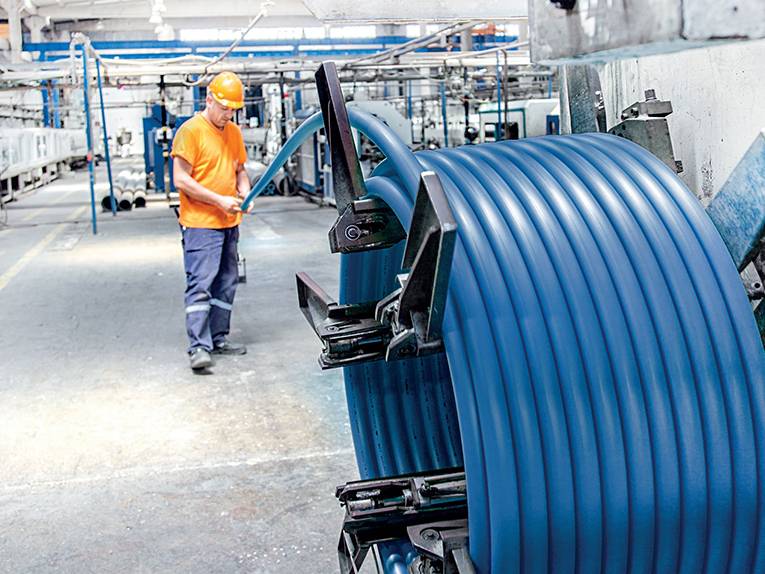

The pipes are supplied within the scope of our company’s supplying activities; desired quality requirements,quality plans, standards, customer specifications checking their conformity and quality continuity to ensure every stage of supplying is taken under control . HDPE pipes supplied with PE 100 raw material are resistant to high pressure compared to Traditional PE pipes supplied with its raw materials. The water pressure of 16 bar has reached 32 bar in pipes which are supplied with upper limit PE100 raw material. Thus, it has started to replace traditional pipes (steel, cast iron, ductile…) in the water transfer main pipes. PE100 pipes are coiled up to 125 mm diameter or on request 6, 12, and 13.5 mt as straight pipes; Over 125mm diameters are supplied only in straight pipes of 6, 12, and 13.5 mt. Also depending on customer demand supplying can be made in special sizes. Levant; provides engineering support to its customers before and after procurement for the correct and efficient use of its products and technology.

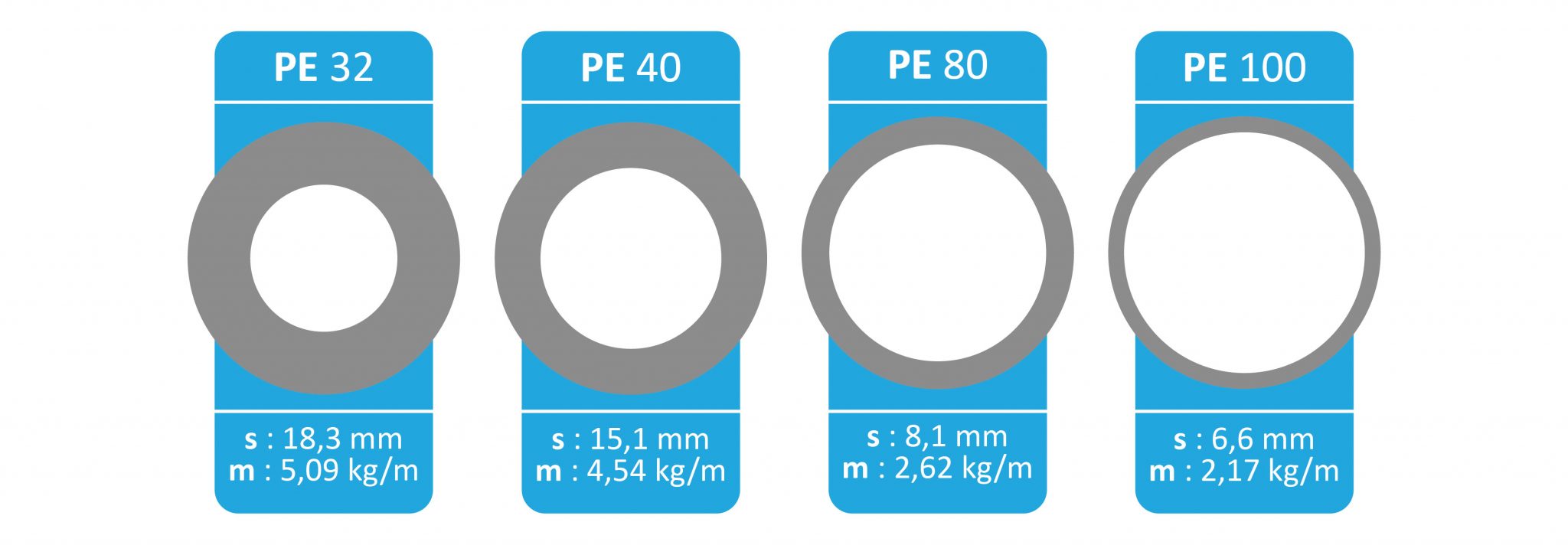

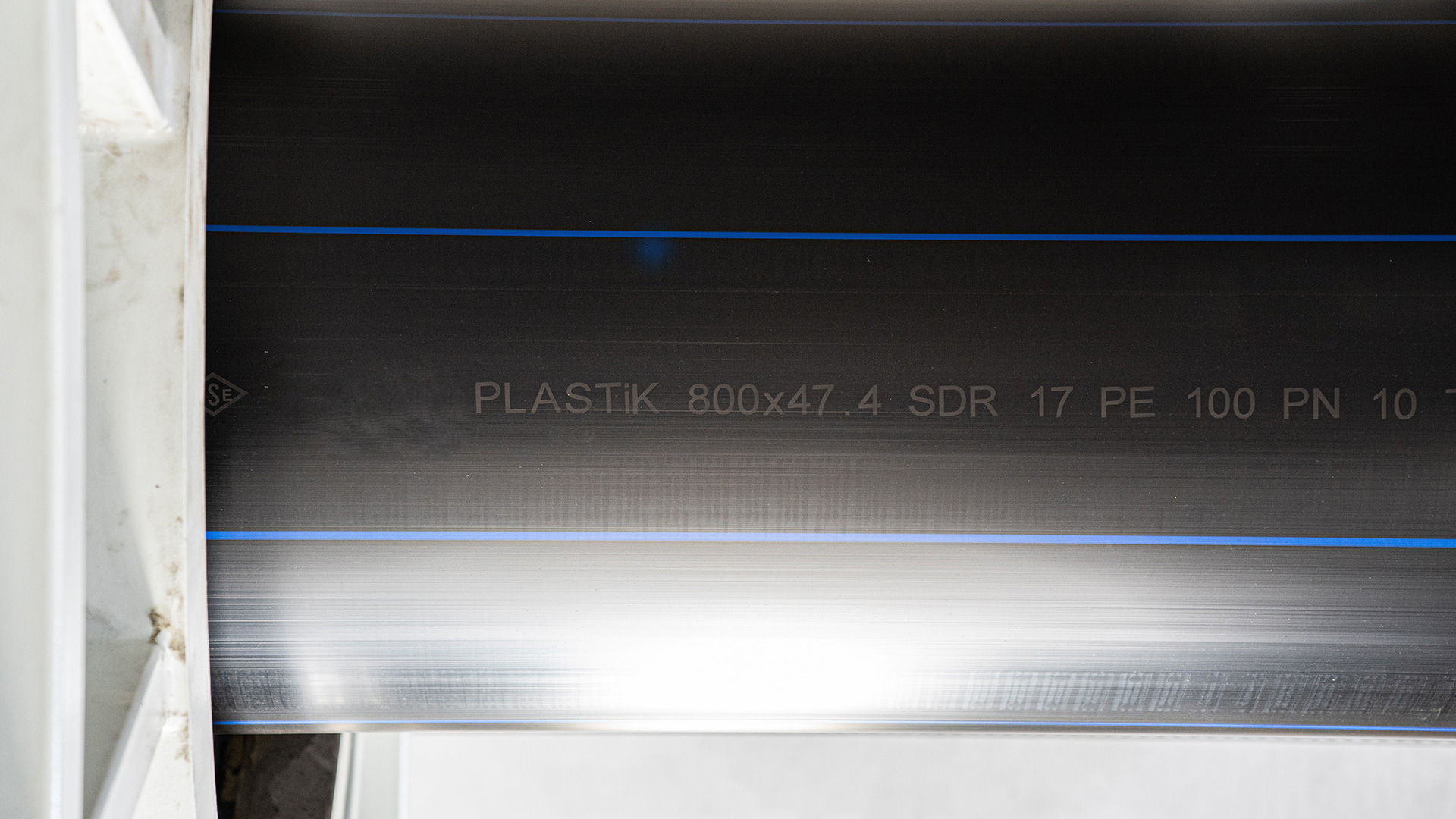

With an outer diameter of 110 mm and a working pressure of 10 bar for a pipe PE 32, PE 63,
if they are produced from PE100 raw materials, wall thicknesses and their weight will be according to the given data on the above.
if they are produced from PE100 raw materials, wall thicknesses and their weight will be according to the given data on the above.

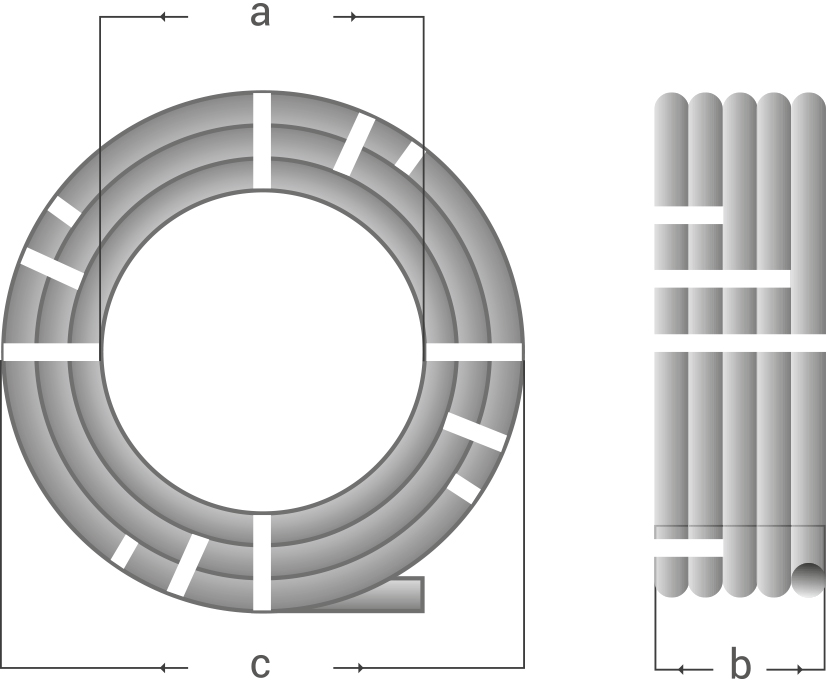

PE100 (HDPE) | Coil Dimensions and Lengths
.jpg)
| Diameter (DN) | Coil Inner Diameter (a)(cm) | Coil Width (b)(cm) | Coil Outer Diameter (c) (cm) | Coil Length (m) |
|---|---|---|---|---|
| 20 | 48+2 | 27+3 | 75±3 | 200 |
| 25 | 48+2 | 27+3 | 88±3 | 200 |
| 32 | 68+2 | 30+3 | 90±3 | 200 |
| 40 | 78+2 | 32+3 | 116±5 | 100 |
| 50 | 100+2 | 42+4 | 135±5 | 100 |
| 63 | 120+2 | 47+4 | 165±5 | 100 |
| 75 | 150+2 | 45+4 | 245±5 | 100 |
| 90 | 180+2 | 52+5 | 250±5 | 100 |
| 110 | 230+2 | 52+5 | 320±5 | 100 |
| 125 | 240+2 | 56+6 | 360±5 | 100 |
