BUTTERFLY VALVE U TYPE

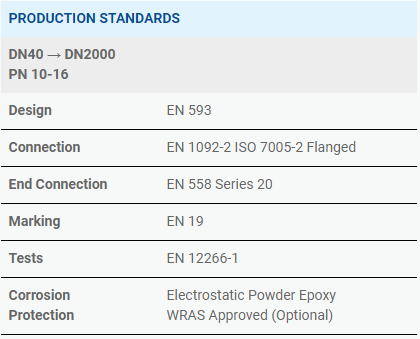

Specification:

    • PTFE bushing ensure the maximum shaft support.
      360° polished disc assures positive on-off.
    • Hard-backed cartridge seat.
    • Univeral ISO5211 mounting pad.
    • Flow curve tending to straight line. Excellent regulation performance.
    • Bubble-tight sealing with no leakage under pressure test.
    • Wide selection of materials, applicable for various mediums.
    • Higher thicknesses are available upon request.
    • Stem sealing is not easy deformation, so avoids leakage phenomenon.
    • Overall support is good, stable and solid.
    • Use less rubber of seat, so expansion has small impaction and easy to control torque value at an appropriate range.
    • Applying to two pieces of no-sells connection; structure is simple and convenient to be maintained.
    • Butterfly disc owns automatic alignment function and achieved small combination of disc and seat.
    • Phenolic back seat is featured such as no loss, tensile, anti-leak, convenient replacement etc.
    • For seat sealing surface and phenolic back as whole as a whole, it can reduce amount of deformation.
